BDS Suspension
2 Inch Lift Kit - FOX 2.0 Strut - Ford F150 (14-20) 4WD
SKU:
BLDV-BDS1553FSR
- $1,750.75
- $1,750.75
-
- Unit price
-
per
FREE SHIPPING
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Important Notes
- Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
- Will not fit HD models (7 lug).
Features & Benefits
- FOX Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
- HD Upper control arms provide superior strength and proper alignment
- Adjustable height to fine tune
- Provides level stance from front to rear
- Easy, 100% Bolt On installation
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

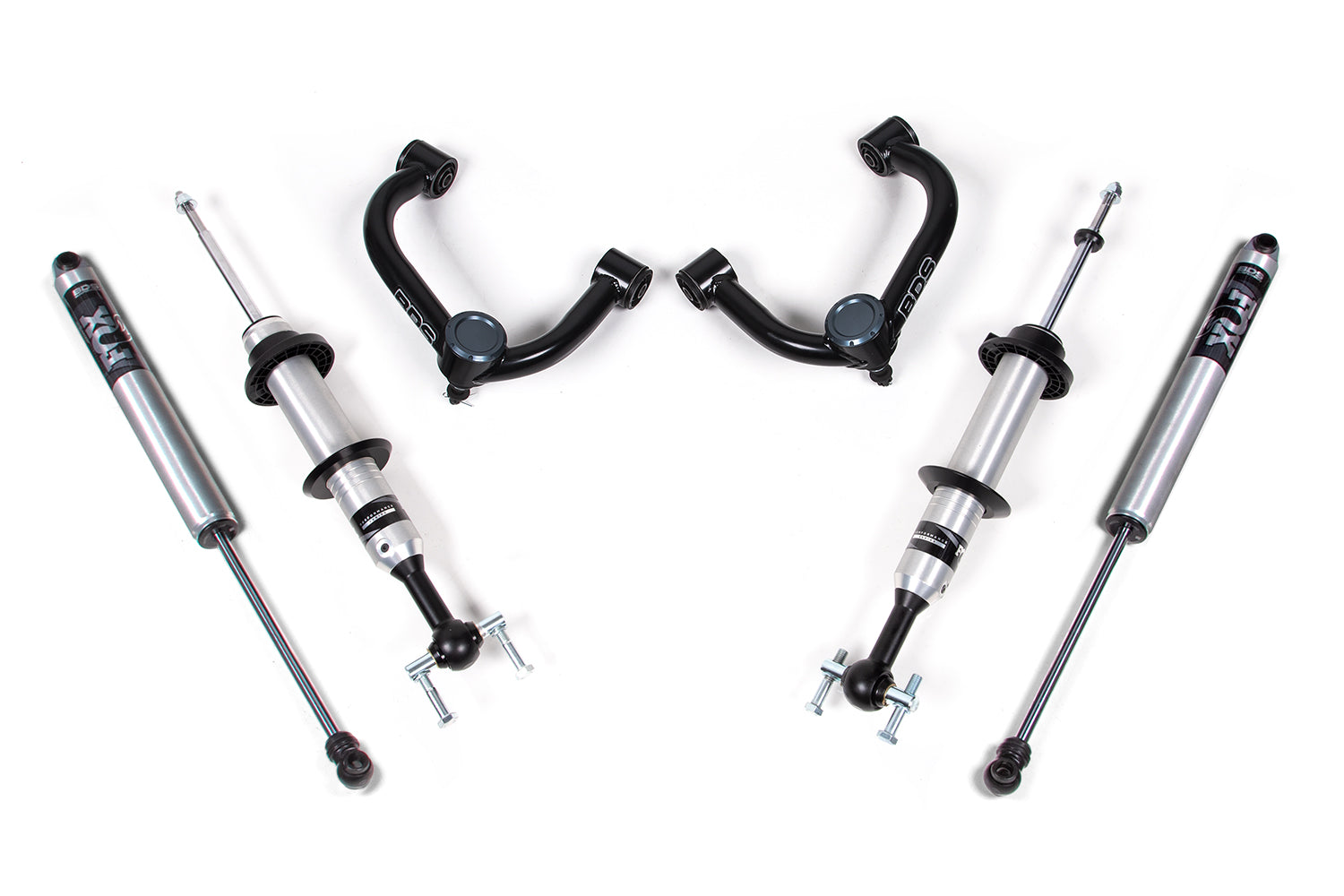

Built to outperform, upgrade your 2014-2020 Ford F150 truck with this 2-inch leveling kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.
FOX 2.0 Snap Ring Strut
The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.
A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.
HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Product Specs
| SKU: | BLDV-BDS1553FSR |
|---|---|
| Front Lift Method: | Coil-Over |
| Rear Lift Method: | Stock |
| Shocks Included: | Yes |
| Front Lift Height: | 2 |
| Rear Lift Height: | 0 |
Installation Details
Installation Time:
3 Hrs
Installation Difficulty:
moderate
Installation Tools Needed:
- Basic Hand Tools
- ballJointSeparationTool
- jack hydraulic
