BDS Suspension
4 Inch Lift Kit - Ford Ranger (83-97) 4WD
SKU:
BLDV-BDS516H
- $895.70
- $895.70
-
- Unit price
-
per
FREE SHIPPING
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Important Notes
- Ball joint alignment cam will be required for alignment, these are available in the options section or from your local alignment shop.
- Extra cab models may not achieve stated height.
- Models equipped with a 2-piece driveshaft will require the carrier bearing crossmember to be lowered.
- Bronco II 1985-90 models with CV joint type drive shaft must be converted to an exposed joint shaft.
- Vehicles equipped with factory STX package will not achieve stated height
- The dual steering stabilizer listed in the accessories will not fit applications with a factory front sway bar.
Features & Benefits
- Easy, Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty steel drop brackets for proper suspension geometry
- Cast steel blocks provide level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control
Recommended Tires & Wheels
(Trimming may be required)
- 31 x 10.5 with 15 x 8 and 3.5 in. Backspace

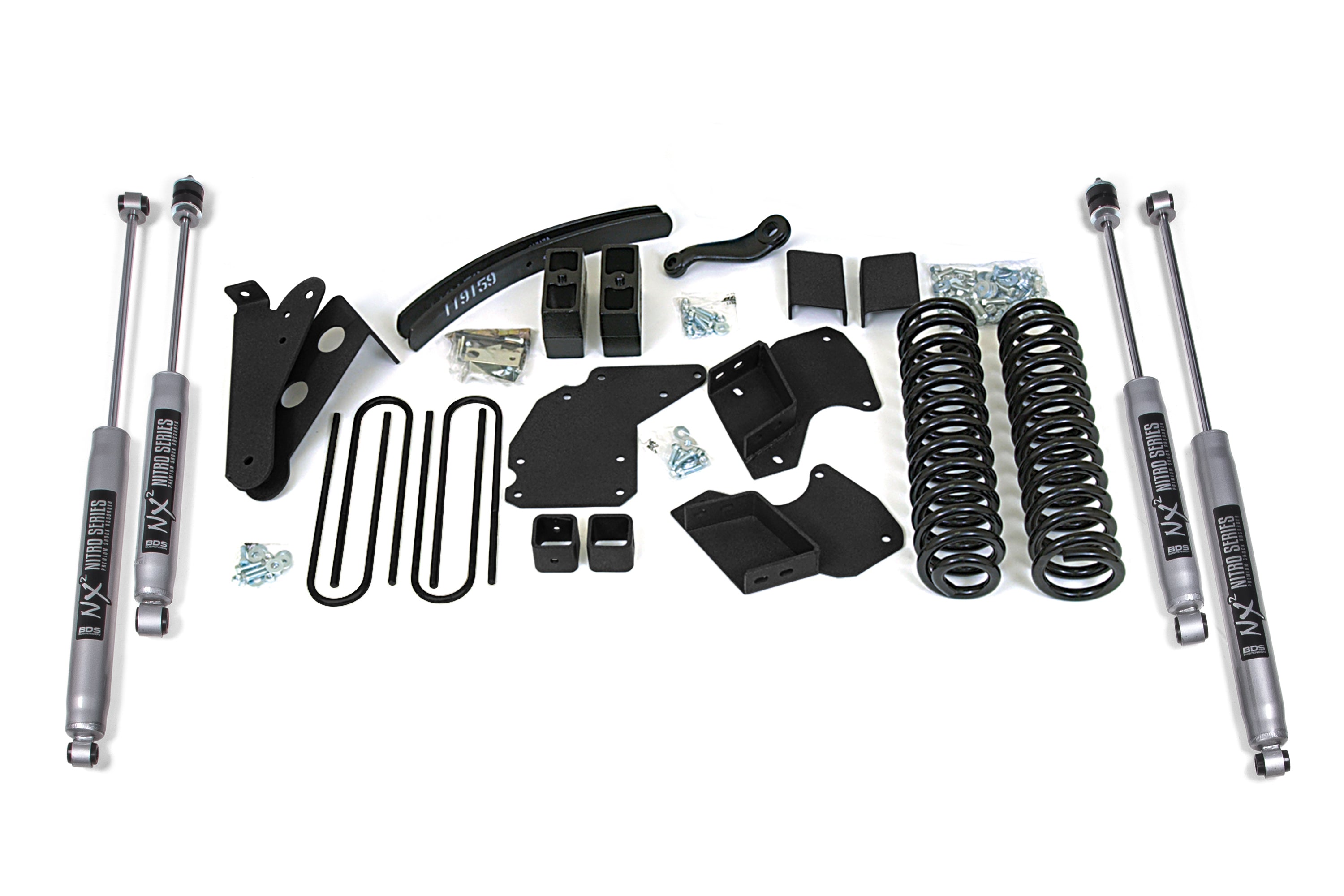

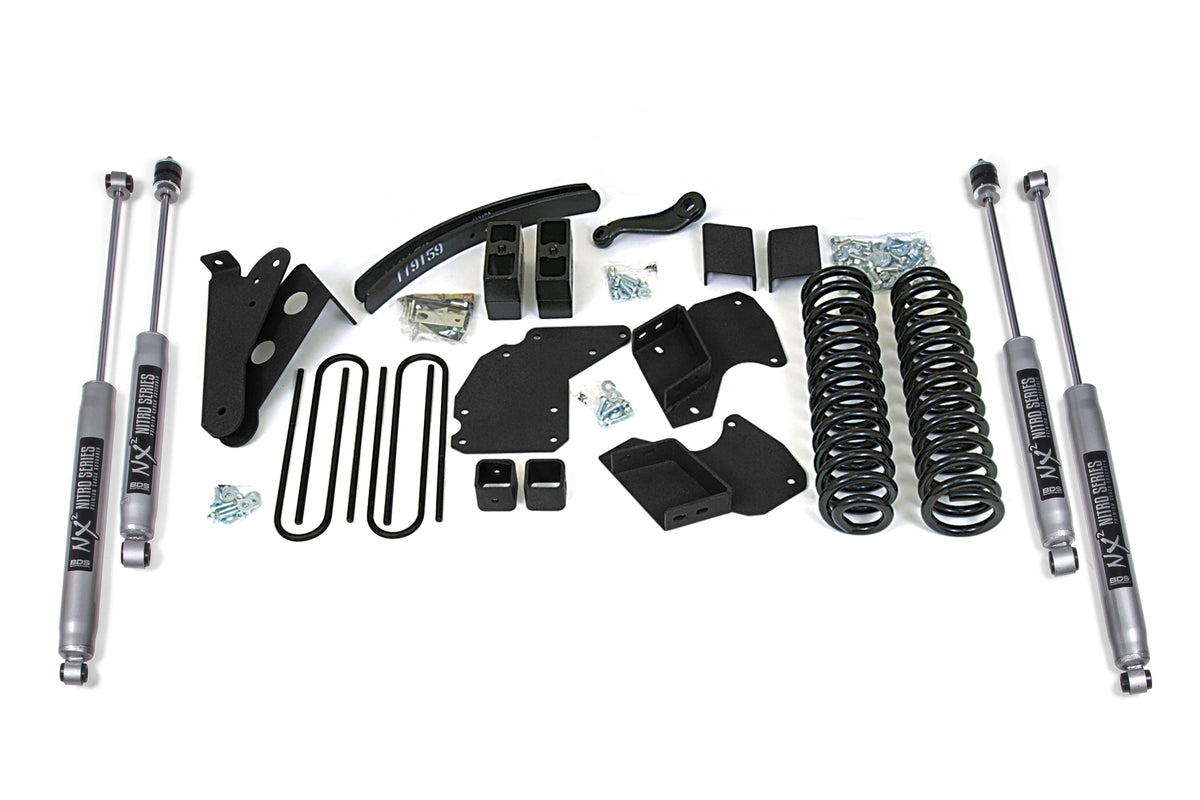

Improve the ride and level out your 1983-1997 Ford Ranger 4WD truck with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 31" tires.
Up front the lift kit includes Pro-Ride coil springs, heavy duty axle pivot brackets, radius arm drop brackets, forged pitman arm for steering correction, bump stop extensions and precision tuned NX2 nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Pro-Ride Coil Springs
A pair of full-length, truck-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Product Specs
| SKU: | BLDV-BDS516H |
|---|---|
| Front Lift Height: | 4 |
| Rear Lift Height: | 3.5 |
| Rear Lift Method: | Block |
| Front Lift Method: | Coil Spring |
| Shock Included: | Yes |
Installation Details
Installation Time:
8 Hrs
Installation Difficulty:
moderate
