BDS Suspension

6 Inch Lift Kit - Adaptive Ride Control Only - Chevy Silverado High Country or GMC Denali 1500 (19-24) 4WD - Diesel

SKU: BLDV-BDS1811H
$2,233.39
$2,233.39

FREE SHIPPING

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

6 Inch Lift Kit - Adaptive Ride Control Only - Chevy Silverado High Country or GMC Denali 1500 (19-24) 4WD - Diesel

6 Inch Lift Kit - Adaptive Ride Control Only - Chevy Silverado High Country or GMC Denali 1500 (19-24) 4WD - Diesel

$2,233.39

6 Inch Lift Kit - Adaptive Ride Control Only - Chevy Silverado High Country or GMC Denali 1500 (19-24) 4WD - Diesel

$2,233.39

Important Notes

  1. Requires frame bracket modification
  2. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled
  3. 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
  4. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
  5. 2.7L models use Diesel kit for proper skid plate fitment
  6. Will NOT fit models with a single leaf spring (monoleaf) rear suspension.

Features & Benefits

  • Maintains factory adaptive ride control system
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels
(Trimming may be required)

  • 295 / 70 with 17 x 9 and 4.5 in. Backspace
  • 295 / 65 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 6.25 in. Backspace

Improve the look and ride of your Chevy Silverado High Country and GMC Denali 1500 trucks with a 6-inch suspension lift kit by BDS Suspension. Works with trucks equipped with Adaptive Ride Control only. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

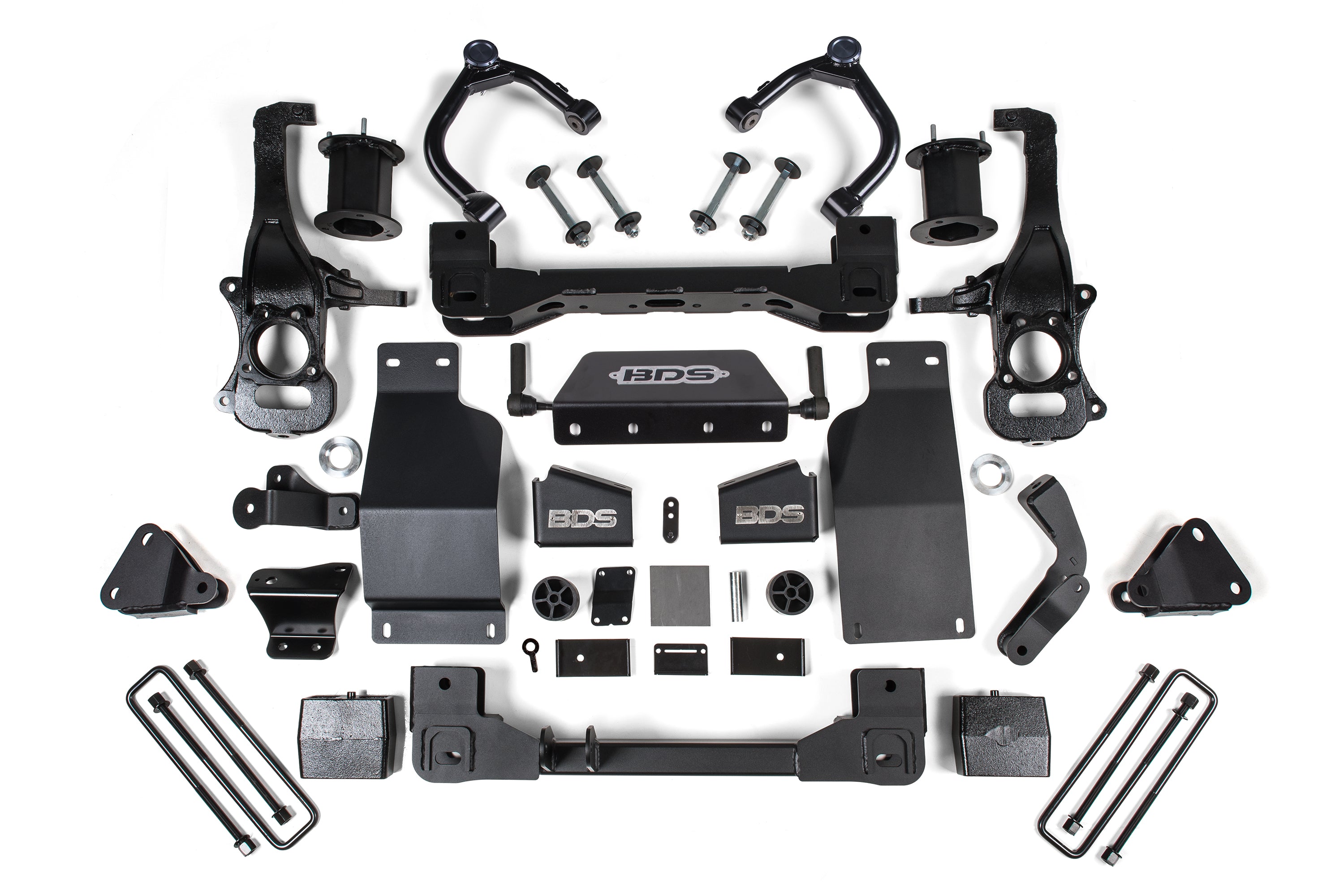

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and shock relocation brackets to retain the ARC system without error.

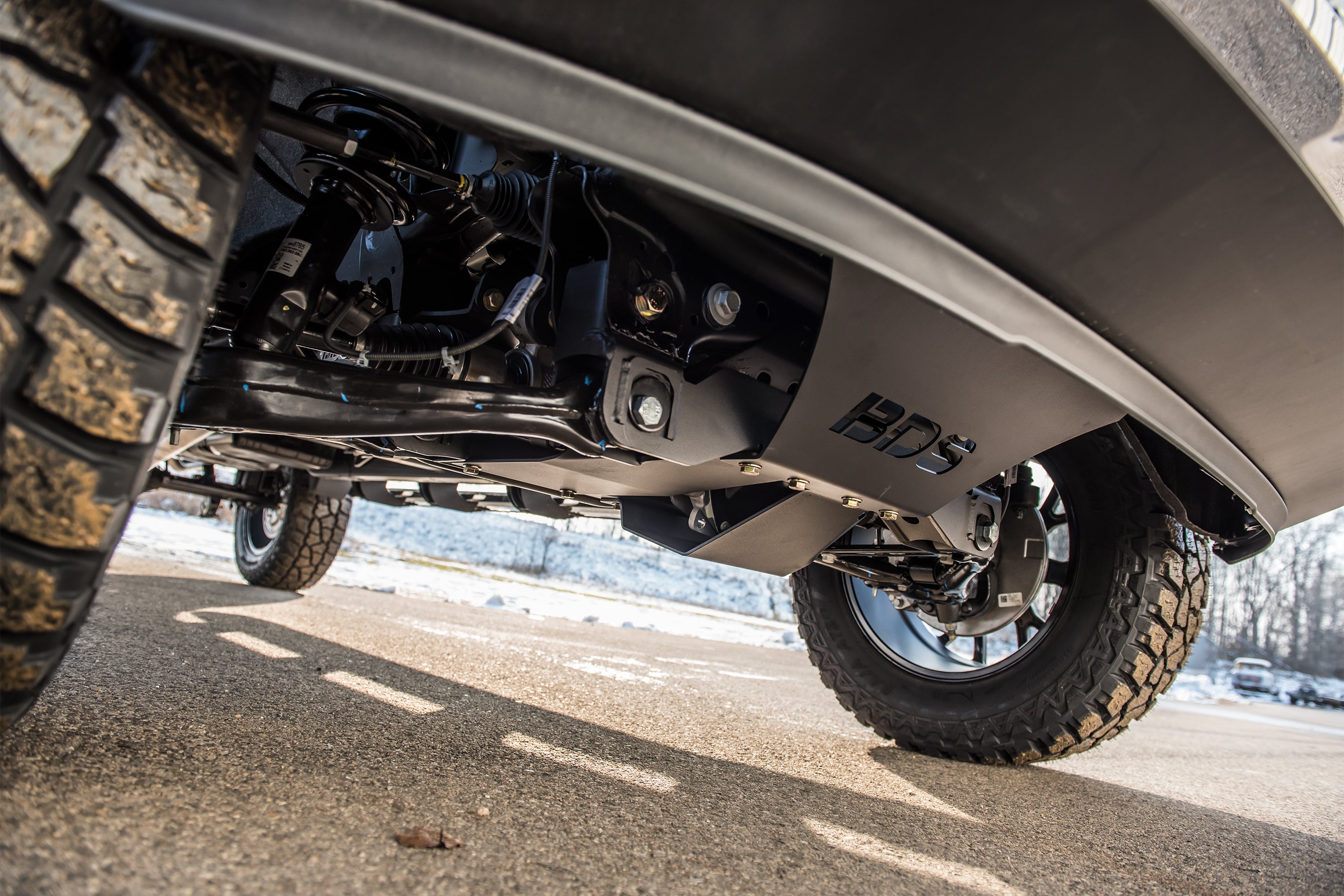

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

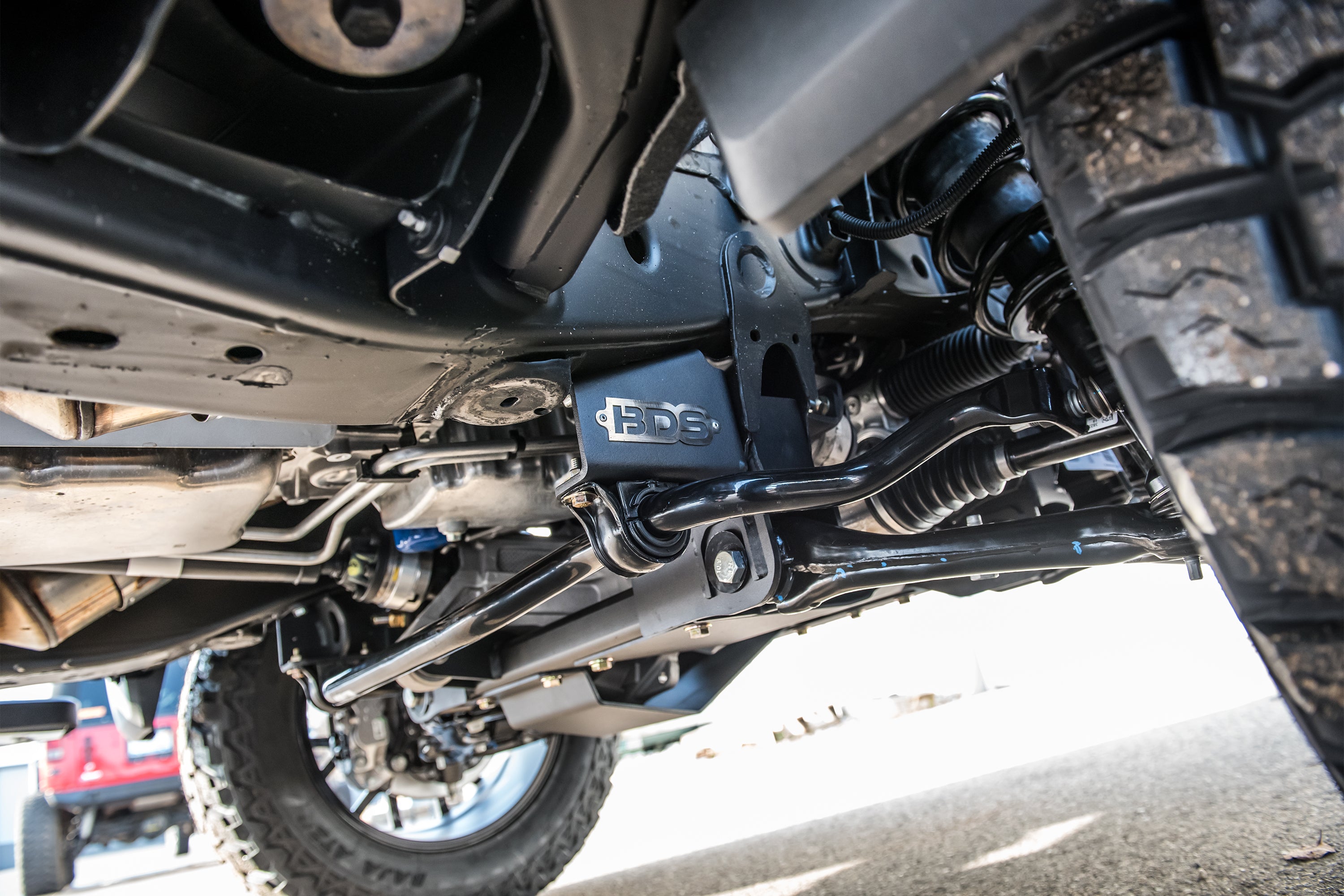

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Product Specs

SKU: BLDV-BDS1811H
Front Lift Method: Cross-Member
Rear Lift Method: Block
Shocks Included: No
Front Lift Height: 6
Rear Lift Height: 4

Installation Details

Installation Time: 8 Hrs
Installation Difficulty: difficult
Installation Tools Needed:
  • 36mm Socket
  • Cut Off Wheel or Equiv
  • ballJointSeparationTool
  • saw reciprocating
  • welder
