Free Shipping Over $149*
ICON Vehicle Dynamics
ICON 05-15 TACOMA 0-3.5"/16-23 0-2.75" STAGE 2 SUSPENSION SYSTEM
SKU:
FRDK-K53002
Product Type:
Suspension Lift Kit
- $2,305.80
- $2,305.80
-
- Unit price
-
per
FREE SHIPPING
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
- 2005-2015 TACOMA 0-3.5" LIFT/16-UP 0-2.75" LIFT STAGE 2 SUSPENSION SYSTEM
- ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #111: BUMP STOP SPACER KIT 51045 CAN BE INSTALLED TO INCREASE PRELOAD .25" BEYOND MAXIMUM
- APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 can be installed to increase preload .25" beyond maximum
- TECH NOTE: 2017-UP Tacoma TRD Pro models will have lift height range of 0-1.25" over stock
- TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
- Ships in Multiple Boxes
- TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #109: 2016-UP TACOMA LIFT RANGE IS 0-2.75â€
- APPLICATION NOTE #109: 2016-2023 Tacoma Llft range Is 0-2.75â€
- APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE

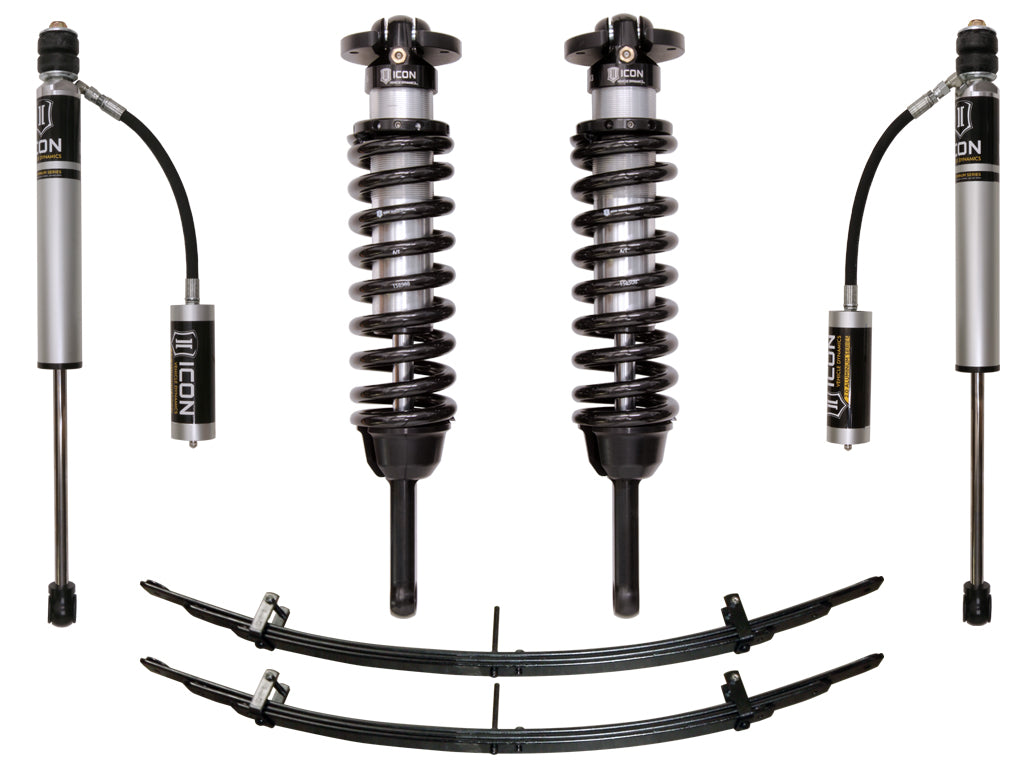

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5"coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel"through the range of travel. These coilovers are also height adjustable from 0-3.5"of lift on 2005-2015 or 0-2.75"on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoir ICON 2.0 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5"coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel"through the range of travel. These coilovers are also height adjustable from 0-3.5"of lift on 2005-2015 or 0-2.75"on 2016-UP models allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoir ICON 2.0 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-UP Toyota Tacoma 4WD/PreRunner Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Increased wheel travel and ride quality over stock
- Simple, bolt-on installation
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
- Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series remote reservoir rear shock with 5/8" shaft
- ICON engineered coil springs
- Bolt-on system means no cutting or welding necessary for install
- 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
- Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Product Specs
| SKU: | FRDK-K53002 |
|---|---|
| Shock Included: | Yes |
| Mounting Hardware Included: | Yes |
