Free Shipping Over $149*
ICON Vehicle Dynamics

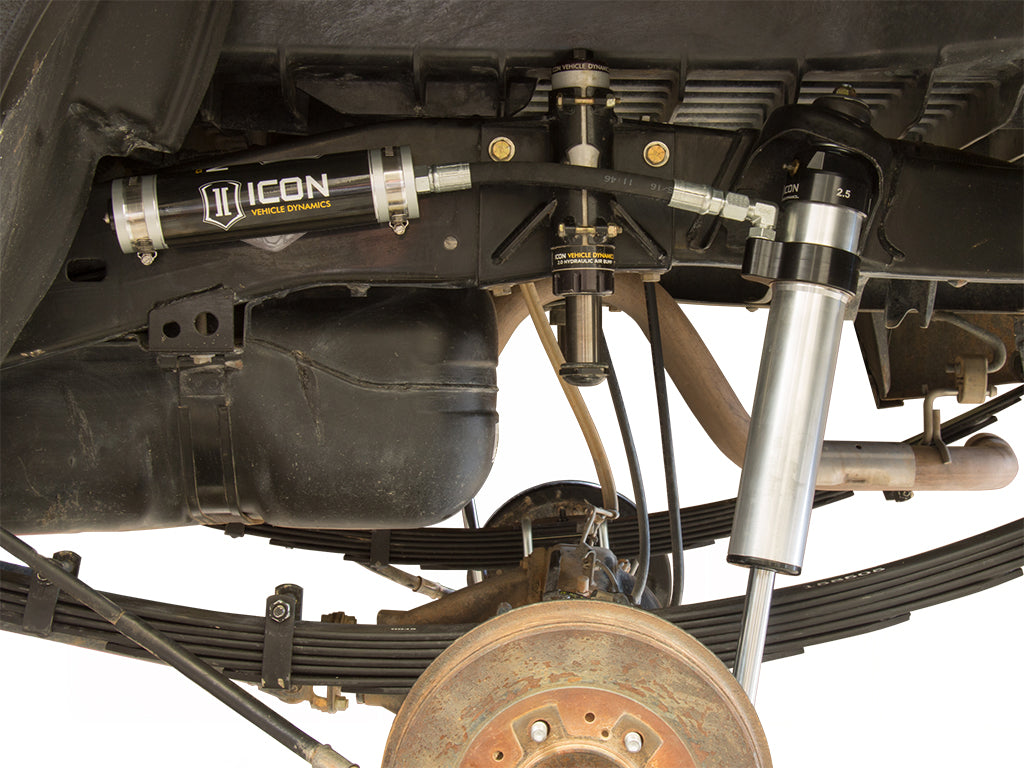

ICON 05-23 TACOMA RXT STAGE 1 SYSTEM
SKU:
FRDK-K53161
Product Type:
Suspension Lift Kit
- $3,044.75
- $3,044.75
-
- Unit price
-
per
FREE SHIPPING
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.

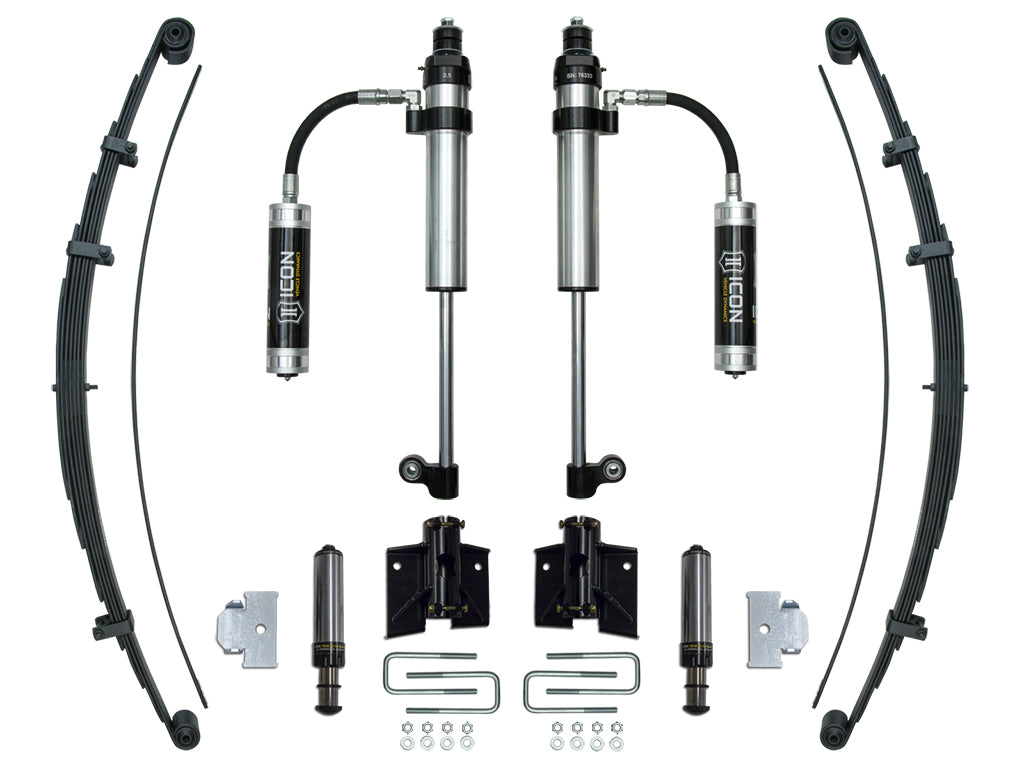

- The RXT Suspension System includes 2.5 Aluminum Series rear shocks and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit for a 20% increase in wheel travel and the ability to adjust the leaf spring rate.
- 2005-UP TACOMA RXT STAGE 1 UPGRADE SYSTEM
- OEM Wheels & Tires Fitment: Yes
- TECH NOTE: Most Tacoma submodels withh have rear lift height range of 1.875-2.625", depending on rear spring configuration and rear weight
- TECH NOTE: 2017-2023 Tacoma TRD Pro models will have 1.375-2.125" of rear lift over stock, depending on rear spring configuration and rear weight
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #17: THESE ARE STAND-ALONE KITS AND ARE NOT TO BE USED IN CONJUNCTION WITH ANY OTHER AFTERMARKET KITS
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- Ships in multiple boxes
- APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.
- TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
The 2005-UP Toyota Tacoma is an extremely reliable truck that has served as a versatile platform for drivers seeking the ultimate off-road adventure. From the brutal deserts of the Southwest, to the slickrock of Moab, to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly for this popular Toyota. ICON Vehicle Dynamics’ engineers have pushed this vehicle to extremes in order to develop the most sophisticated suspension components on the market. Unable to leave “well-enough"alone, ICON is once again aiming to raise the bar in Tacoma performance with the introduction of the RXT Rear Suspension System.
The 2005-2023 Toyota Tacoma is an extremely reliable truck that has served as a versatile platform for drivers seeking the ultimate off-road adventure. From the brutal deserts of the Southwest, to the slickrock of Moab, to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly for this popular Toyota. ICON Vehicle Dynamics’ engineers have pushed this vehicle to extremes in order to develop the most sophisticated suspension components on the market. Unable to leave “well-enough"alone, ICON is once again aiming to raise the bar in Tacoma performance with the introduction of the RXT Rear Suspension System.
Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors"and completely redefines the potential of the 2005-UP Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.
Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors"and completely redefines the potential of the 2005-2023 Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.
- ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
- ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 ¼"CNC machined nitro steel shaft
- ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
- ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
- ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
- ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
- ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
- ICON Hydraulic Rear Bump Stop Kit: “ICON 1K"tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
- ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
- ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
- ICON RXT Rear Shock: 10"aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
- ICON RXT Multi-Rate Leaf Spring: “ICON 1K"tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install

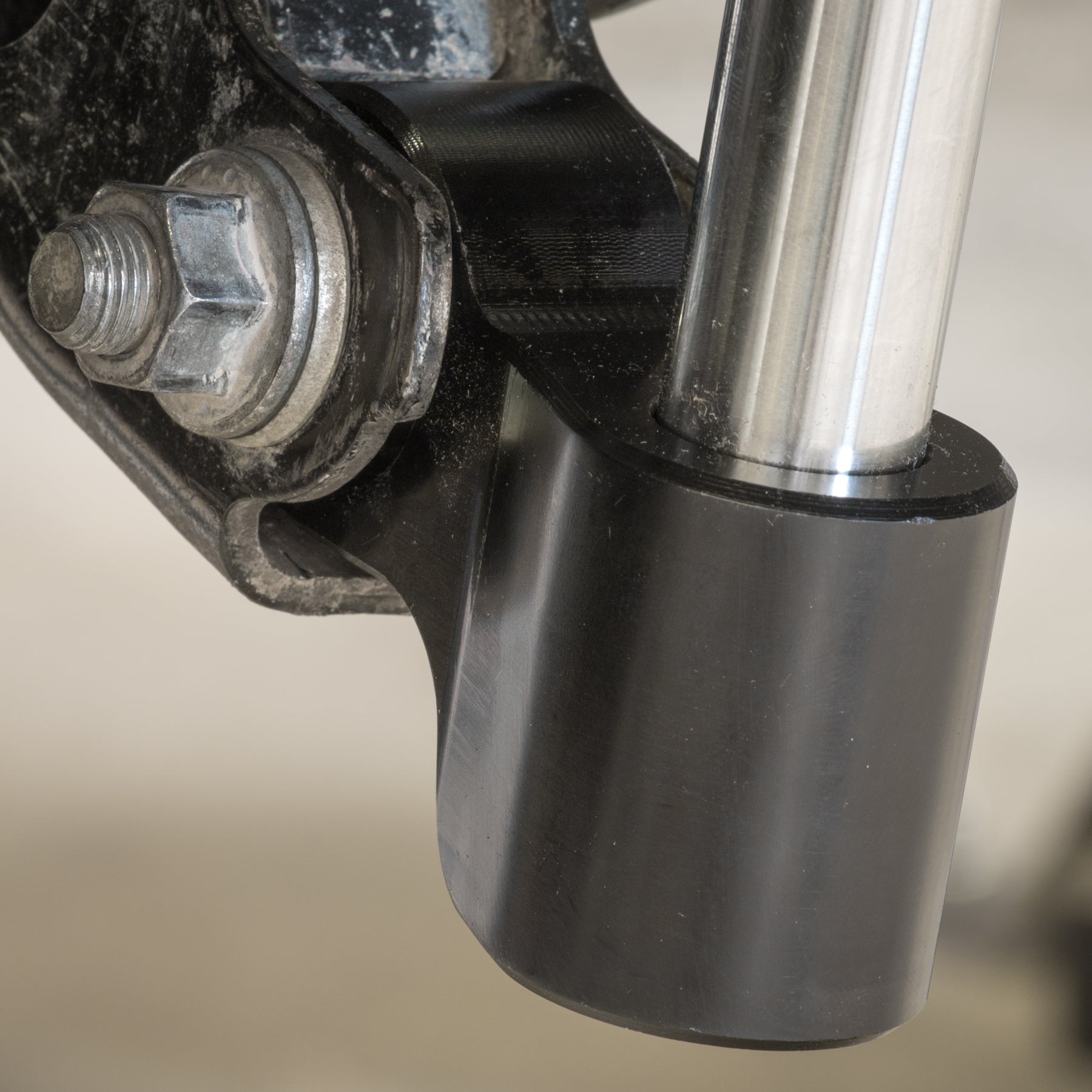

- ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
- ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
- ICON RXT Rear Shock: Corrosion resistant anodized aluminum shock bodies with 7/8" shafts
- ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
- ICON RXT Rear Shock: Simple and straightforward installation
- ICON Hydraulic Rear Bump Stop Kit: 2.5"travel bump stop reduces rear end ‘kick’ and improves overall performance
- ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
- ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Product Specs
| SKU: | FRDK-K53161 |
|---|---|
| Shock Included: | Yes |
| Mounting Hardware Included: | Yes |
