ICON 07-21 TUNDRA/08-22 SEQUOIA 2.5 VS RR COILOVER KIT
SKU:
FRDK-58750
Product Type:
Coilover Spring and Shock Assembly
- $1,899.95
- $1,899.95
-
- Unit price
-
per
FREE SHIPPING
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
- 2007-2021 TOYOTA TUNDRA 2.5 VS REMOTE RESERVOR COILOVER KIT
- These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride quality across varying types of terrain.
- OEM Wheels & Tires Fitment: Yes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 6" Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- APPLICATION NOTE #24: Factory UCA's will not align properly past 2.5" of lift. Above 2.5" of lift an aftermarket UCA is recommended.
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #110: Trimming required for recommended tire size
- APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

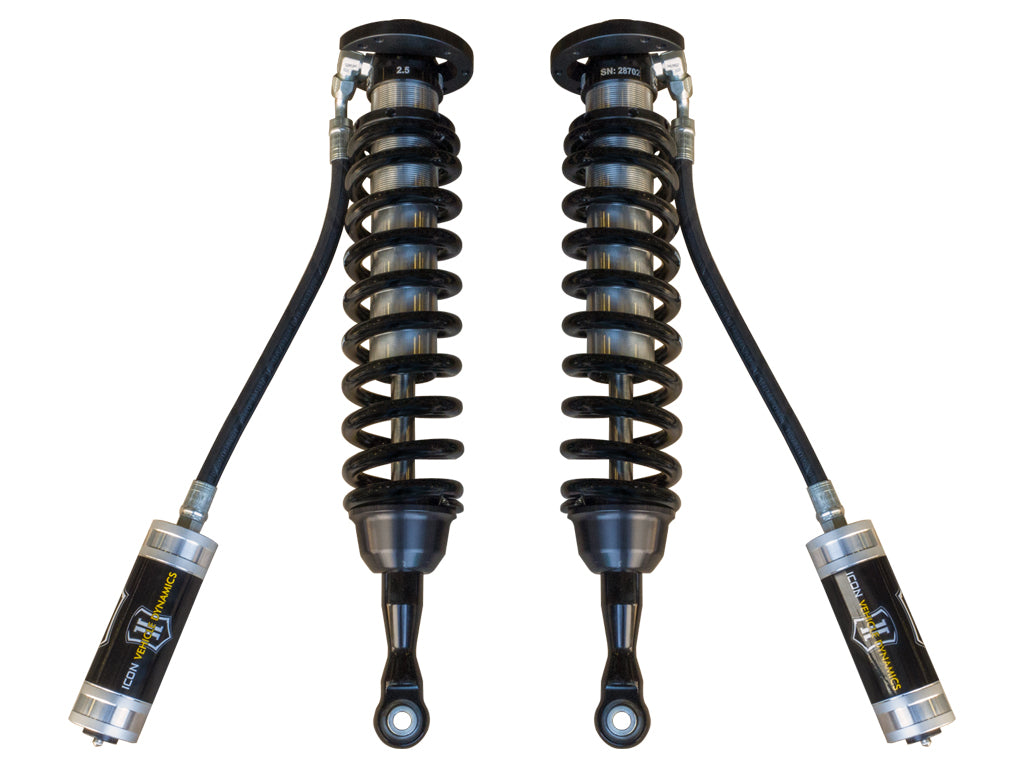

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3"of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving, their large 2.5"shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
ICON Vehicle Dynamics has taken their already perfect performing coil-over shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tundra's front suspension. These coil-over's come complete with all the hardware necessary to complete the installation.
- Adjustable ride height from 1" - 3" of lift over stock
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- 5/8" PTFE-lined spherical bearing
- Fully rebuildable and re-tunable
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
- Vehicle specific shock length yields maximum wheel travel
- Mounting Bracket Orients Reservoir for Optimum Tire Clearance
- Height-adjustable coilovers offer 1.-3" of lift height adjustment over stock
- External Reservoir Ensures Maximum Cooling
- Chrome-silicon spring
- 2.5" diameter shock bodies with remote reservoirs
- 250 PSI nitrogen-charged internal reservoir
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON engineered coil springs
- Race shock piston with flutter stack compression valving
- 6061 Aircraft grade aluminum CNC machined components
- Kit also Includes Reservoir Mounting Brackets
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- Billet aluminum upper mount
- FK rod end bearings for extended longevity and minimal deflection
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Product Specs
| SKU: | FRDK-58750 |
|---|---|
| Material: | Steel |
| Gas Charged: | yes |
| Upper Mount Type: | Mounting Plate |
