ICON 17-23 FORD F250/F350 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM W EXPANSION PACK
SKU:
FRDK-K63143L
Product Type:
Suspension Lift Kit
- $4,938.30
- $4,938.30
-
- Unit price
-
per
FREE SHIPPING
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
ICON 2.5" suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #151: FITS SINGLE REAR WHEEL MODELS ONLY
- TECH NOTE: Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
- TECH NOTE: Will not fit 2024 models
- TECH NOTE: Compatible with 4WD models only
- TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock
- TECH NOTE: 2020-2023 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
- TECH NOTE: 2020-2023 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
- TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
- TECH NOTE: Not compatible with 2023 models equipped with OnBoard Scales
- TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
- TECH NOTE: Not compatible with F-350 Cab & Chassis models
- TECH NOTE: 2023 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
- TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- TECH NOTE: 2023 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
- TECH NOTE: 2023 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
- TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry for 2.5-5.5" of front lift
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
- TECH NOTE: 2023 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
- TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
- TECH NOTE: Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
- APPLICATION NOTE #120: SECONDARY SHOCK OPTIONS AVAILABLE, CONTACT ICON FOR MORE DETAILS.

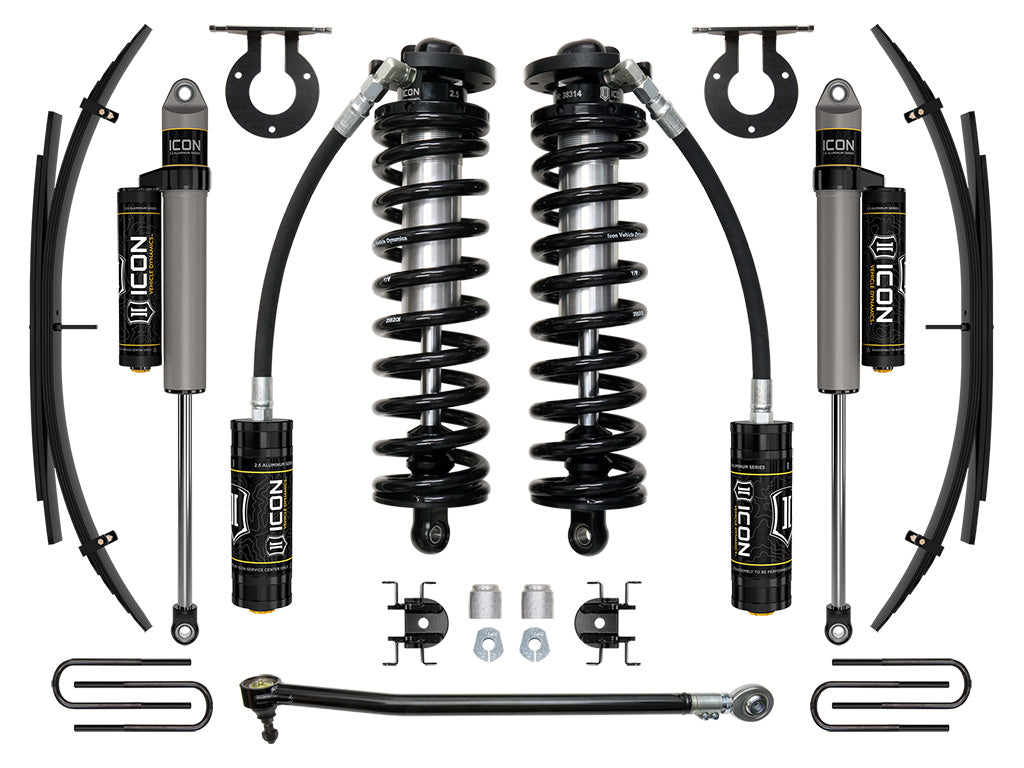

The ICON coilover conversion suspension system is a great way to lift your 4WD 2017-2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 3 System is comprised of 2.5 Series remote reservoir coilovers that are adjustable from 2.5-3" or 3.25-3.75 of front lift over stock (depending on year model and option package), adjustable front track bar with massive FK rod end, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, nd ICON 2.5 Aluminum Series piggyback reservoir rear shocks. ICON 2.5 Series remote and piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3" or 3.25-3.75" of front lift over stock
- Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series rear shocks
- On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
- Application specific alignment Cams ensure proper caster alignment
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Improved ride quality and performance compared to stock with no change in towing capacity
- Less body-roll than stock
- Lifetime guarantee that springs won’t sag or break
- No drive shaft modifications required
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Product Specs
| SKU: | FRDK-K63143L |
|---|---|
| Shock Included: | Yes |
| Mounting Hardware Included: | Yes |
