ICON Vehicle Dynamics
ICON 2003-2008 Ram 2500/3500 4WD, 4.5" Lift, Stage 1 Suspension System
SKU:
FRDK-K214500T
Product Type:
Suspension Lift Kit
- $2,920.55
- $2,920.55
-
- Unit price
-
per
FREE SHIPPING
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
2003-2008 RAM 2500/3500 4WD 4.5" LIFT STAGE 1 SUSPENSION SYSTEM
- OEM Wheels & Tires Fitment: Yes
- Ships in Multiple Boxes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25" Backspace / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #126: Trucks Equipped With 03-06 Style Steering Will Require 4" Drop Pitman Arm (Not Included) Or Upgrade To 07-12 Steering Setup. Trucks Equipped With 07-12 Style Steering Will Need ICON Pitman Arm Part# 214101

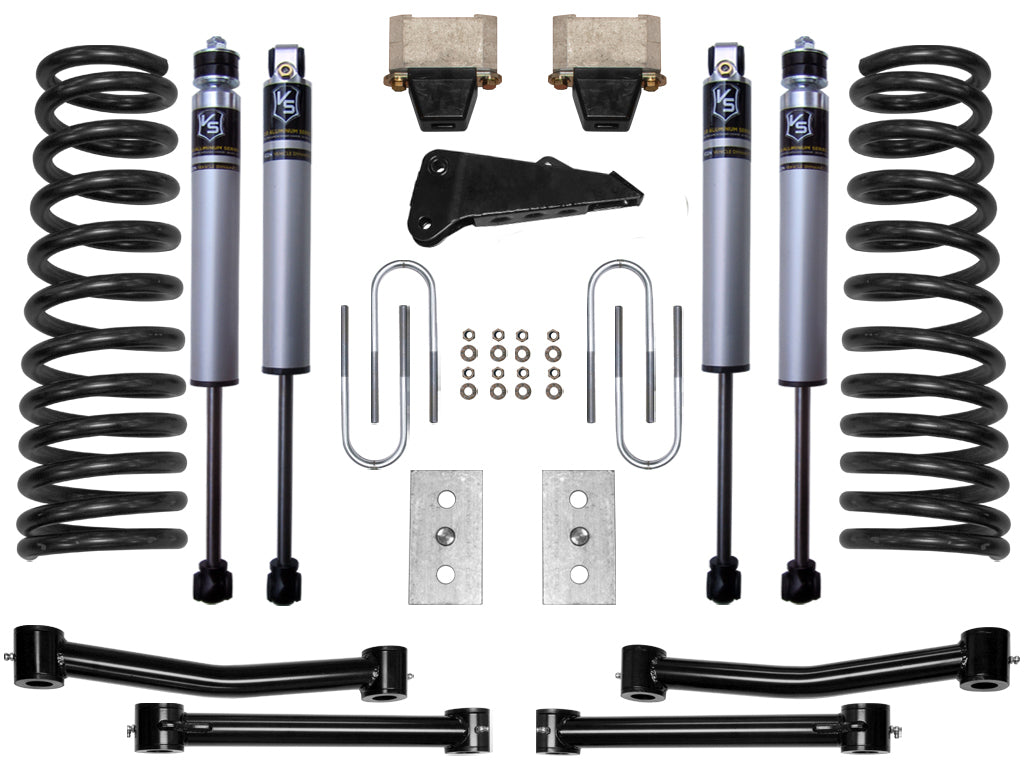

2003-2008 Ram 2500/3500 4.5" Stage 1 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 1 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, rear 2.5" lift blocks with u-bolts, and 2.0 Aluminum Series smooth body shocks. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This entry level system with tubular link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
- ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks
- Heavy-duty steel upper and lower link bars
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Correctly positioned steering and track bar components
- Level stance front to rear
- Less body roll than stock
- No drive shaft modifications needed
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Product Specs
| SKU: | FRDK-K214500T |
|---|---|
| Shock Included: | Yes |
| Mounting Hardware Included: | Yes |
