ICON 21-23 F150 4WD 0-2.75" 2.5 VS RR CDCV COILOVER KIT
ICON Vehicle Dynamics

ICON 21-23 F150 4WD 0-2.75" 2.5 VS RR CDCV COILOVER KIT

SKU: FRDK-91823C
Product Type: Coilover Spring and Shock Assembly
$2,199.95
$2,199.95

FREE SHIPPING

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.
ICON 21-23 F150 4WD 0-2.75" 2.5 VS RR CDCV COILOVER KIT

ICON 21-23 F150 4WD 0-2.75" 2.5 VS RR CDCV COILOVER KIT

$2,199.95
ICON 21-23 F150 4WD 0-2.75" 2.5 VS RR CDCV COILOVER KIT

ICON 21-23 F150 4WD 0-2.75" 2.5 VS RR CDCV COILOVER KIT

$2,199.95
Product Details

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's 2.5" body and increased piston area improves damping and remote reservoirs with CDCV allow for compression damping adjustment.

  • OEM Wheels & Tires Fitment: Yes
  • TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
  • TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
  • TECH NOTE: Not compatible with models equipped with Continuously Controlled Damping (CCD) system
  • TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
  • TECH NOTE: Not compatible with models equipped with BlueCruise
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • TECH NOTE: Only compatible with 4-wheel drive (4WD) models
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • TECH NOTE: Lift heights above 2" over stock may require aftermarket front upper control arms to maintain proper alignment
  • APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
  • APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.

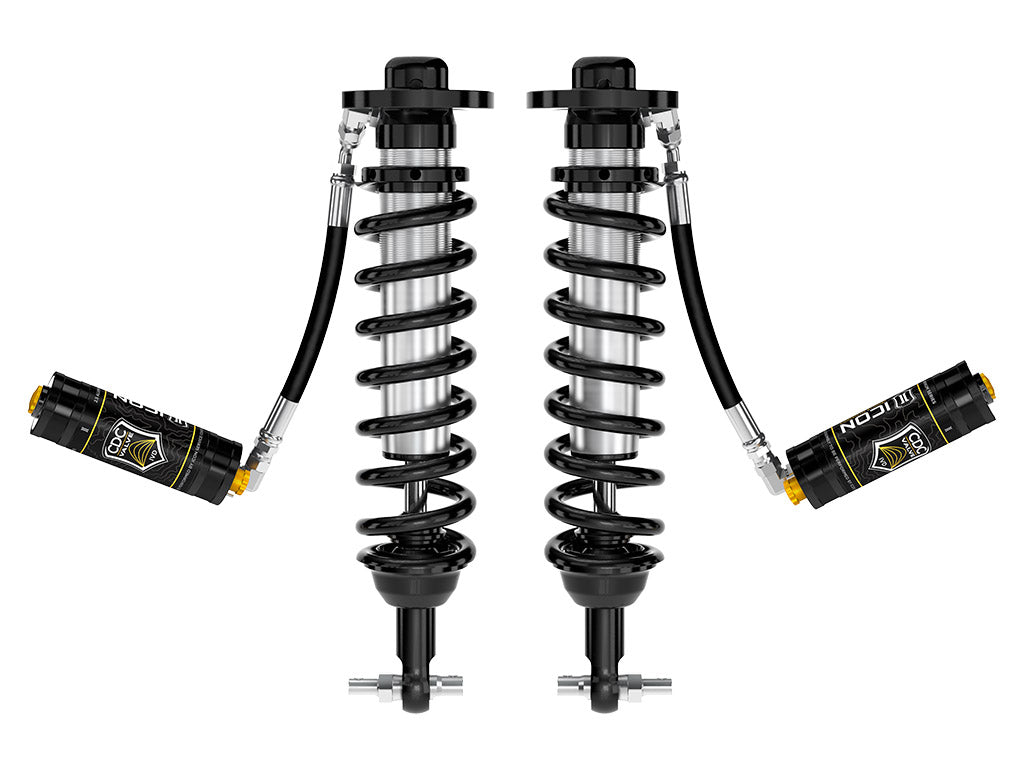

The ICON Vehicle Dynamics V.S. Series 2.5" remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2023 Ford F-150 4WD truck. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2023 F-150 4WD.

  • Increased wheel travel and ride quality over stock
  • ICON CDCV equipped for external tuneability of your shocks
  • Adjustable 0-2.75" lift height
  • ICON engineered Eibach Springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
  • High strength alloy CNC machined lower bar pins
  • FK rod end bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no cutting or welding necessary for installation
  • Vehicle specific tuned for superior shock damping and control
  • External reservoirs to attain cooler operating temperatures during extended off-road use
Shipping & Returns

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Fitment

Product Specs

SKU: FRDK-91823C
Material:

Aluminum
Gas Charged:

Yes
Upper Mount Type:

Mounting Plate
