Zone Offroad 4 Inch Lift Kit | Dodge Ram 1500 (09-11) 4WD

Important Notes

1. Does NOT work with all wheel drive (AWD) models.
2. These trucks are typically between 1" and 3" tail high from the factory.
3. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
4. Not recommended for AWD models.

Features & Benefits

• Heavy-duty differential skid slate improves off-road protection.
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
• Maintains factory ride quality and handling characteristics.
• Rear 2" spacers or 3" coil springs available to achieve desired stance (see important notes).
• Top-mount strut spacers set ride height, maintain ride quality, and are easy to install.

Recommended Tires & Wheels
(Trimming may be required)

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

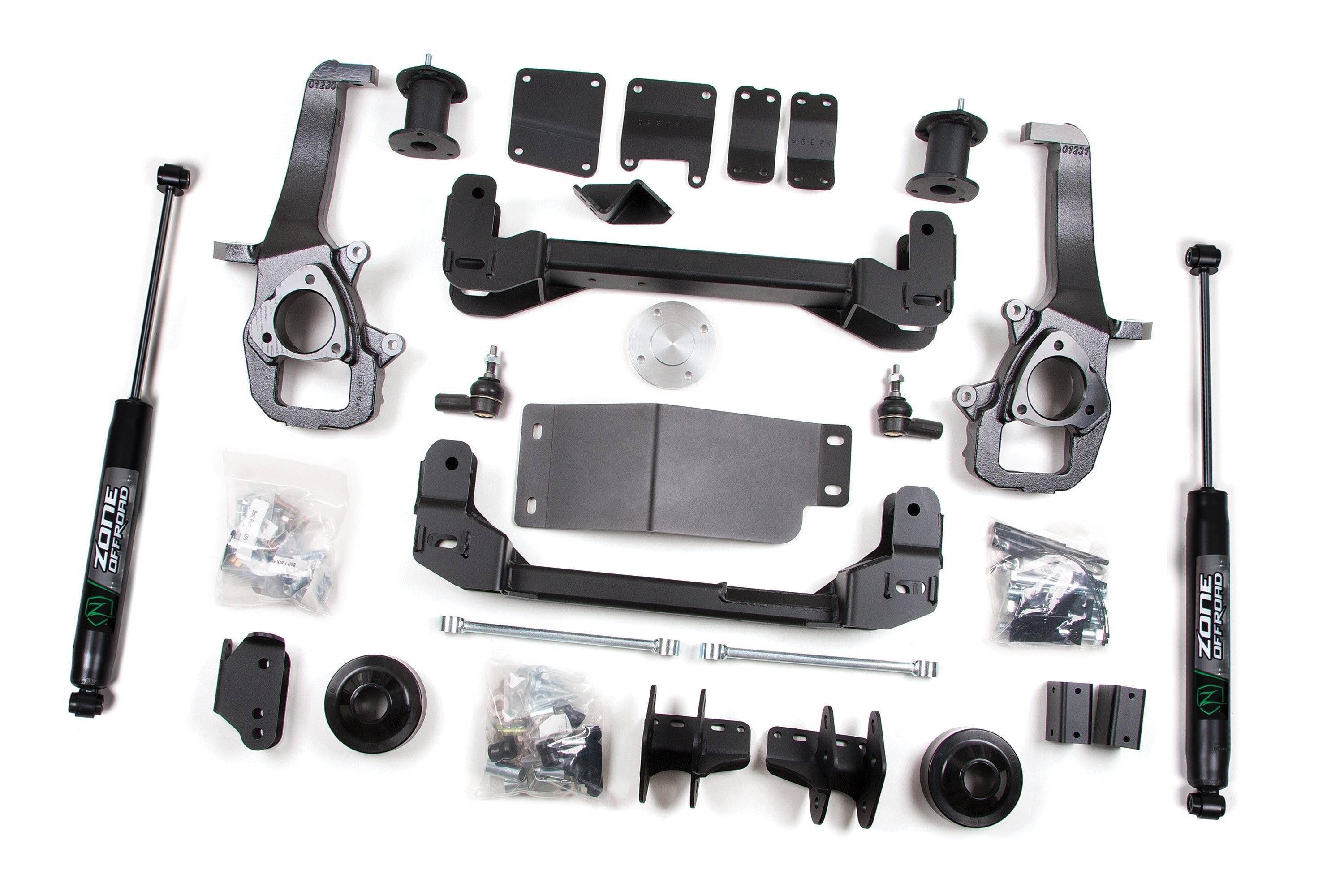

Take your Ram 1500 to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear coil spacers to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Shock Option

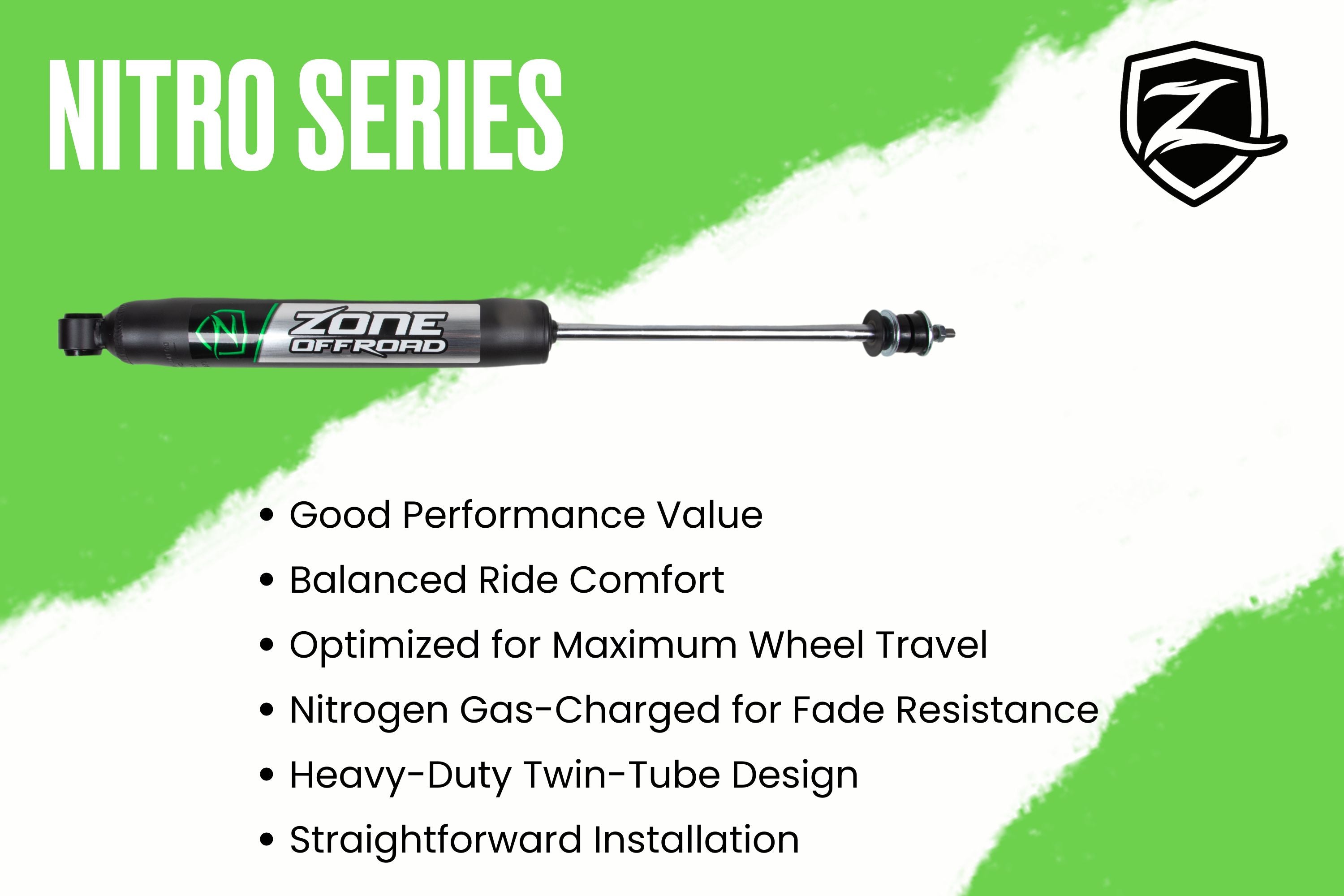

Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals

• Black powder coat finish

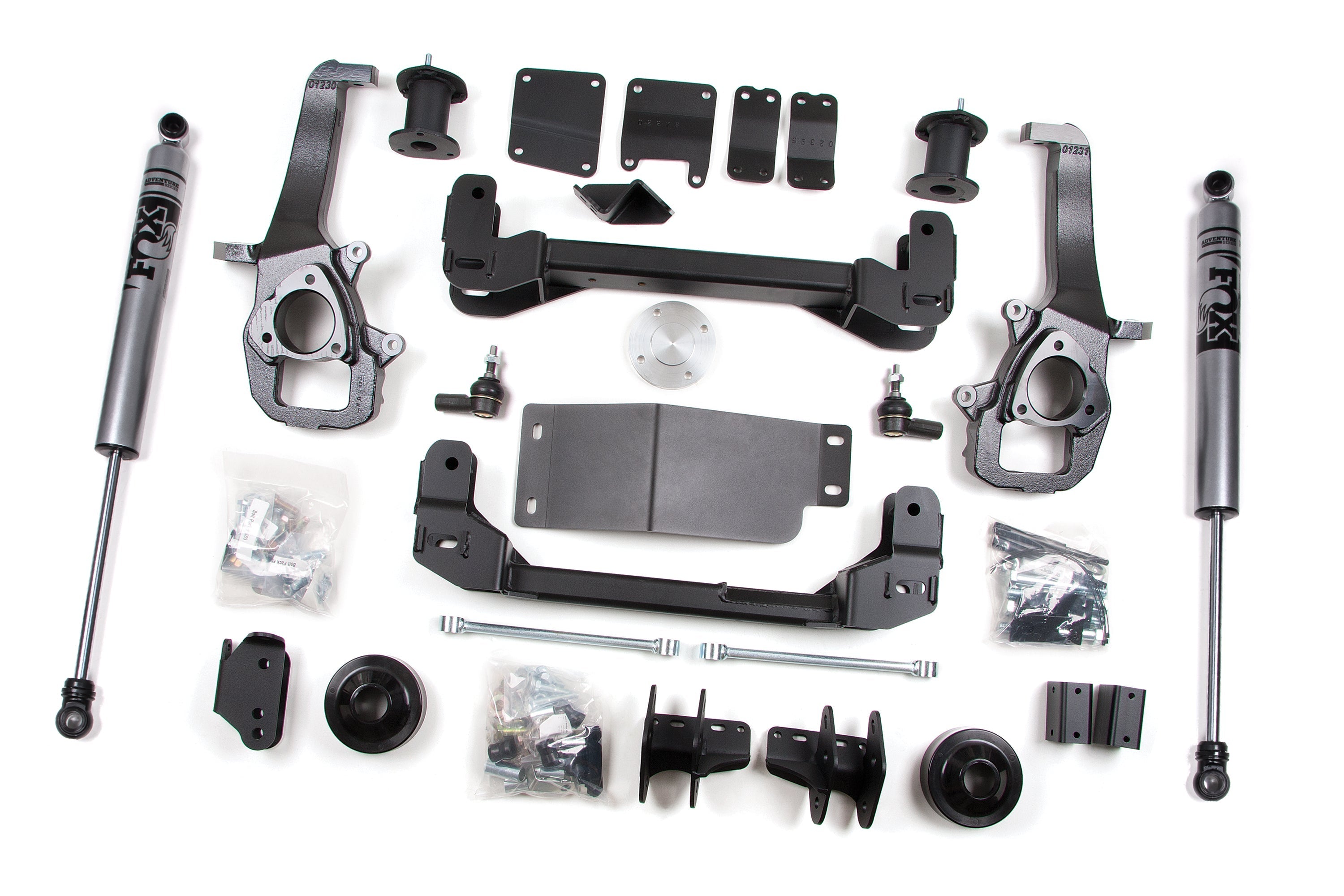

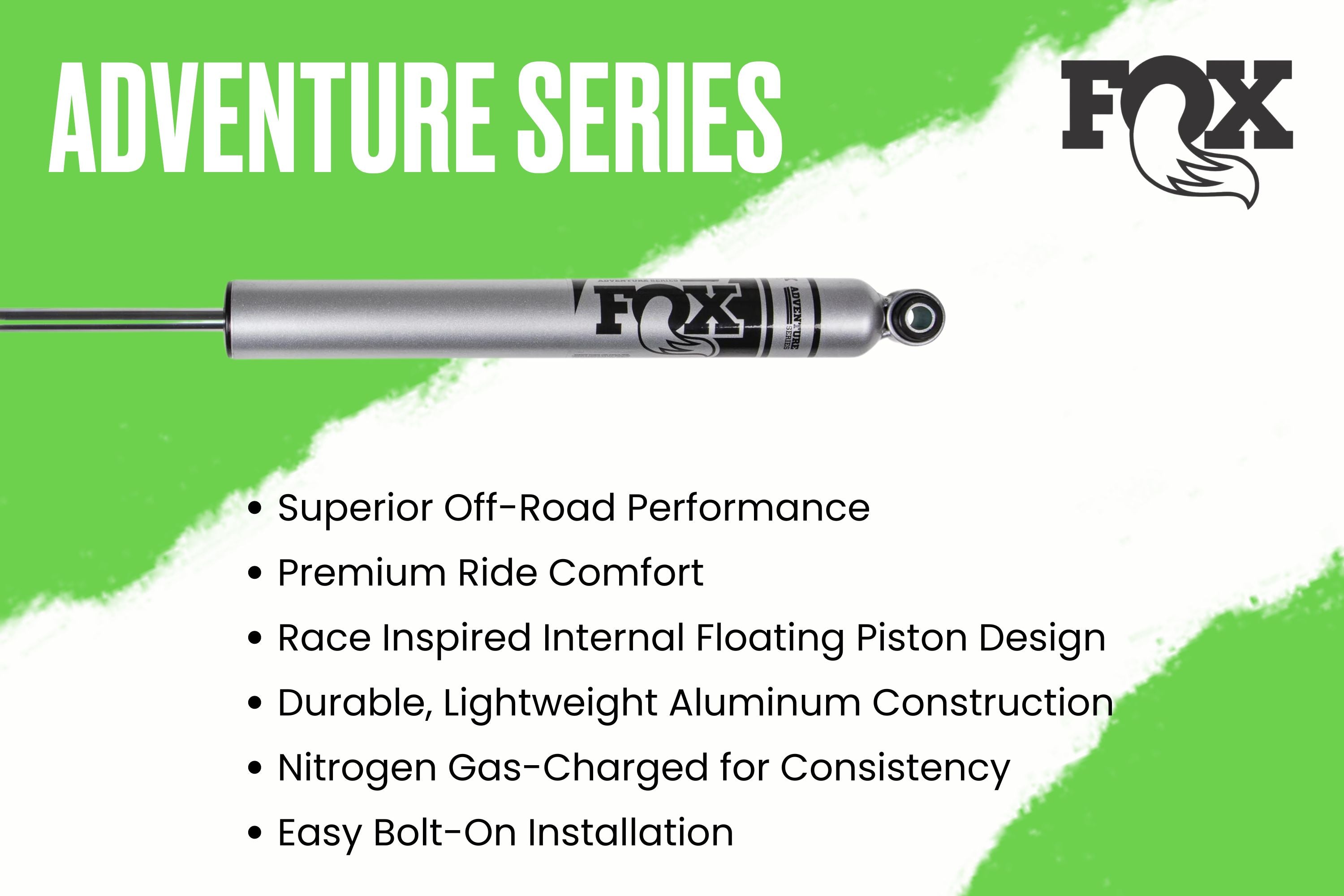

FOX 2.0 Adventure Series

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting silver coated finish
