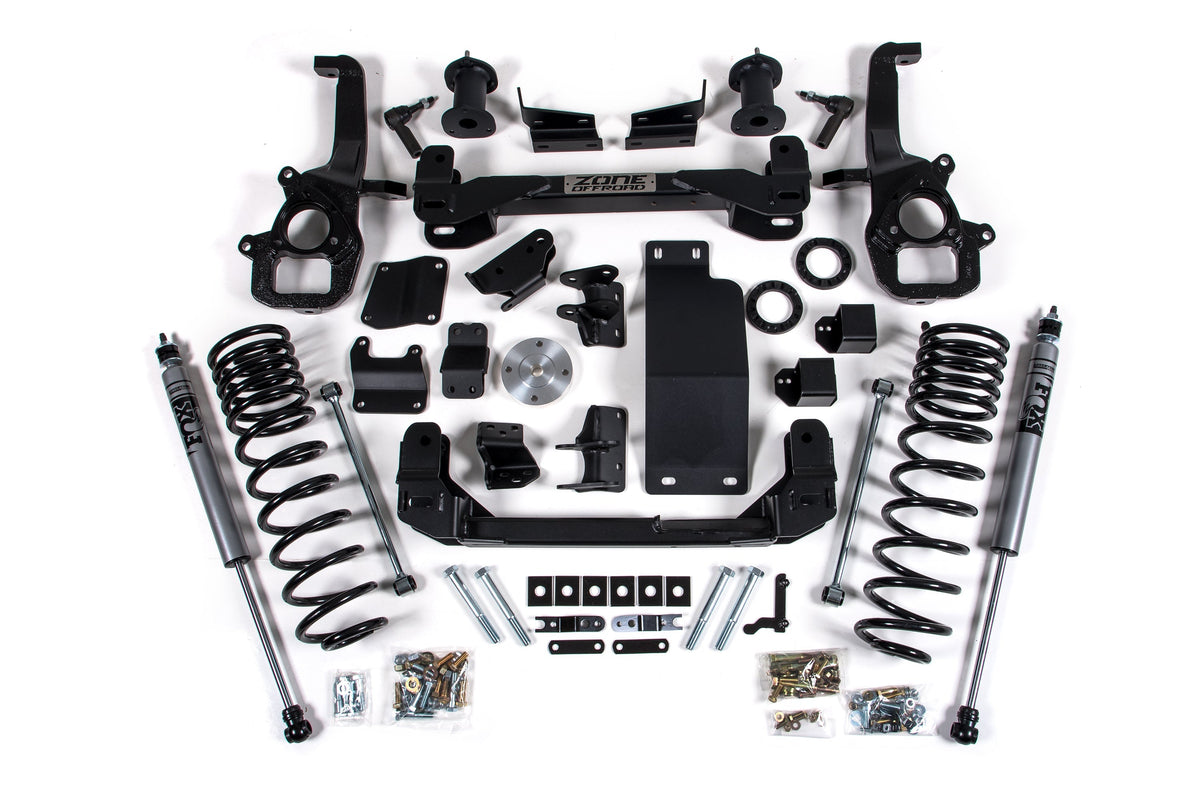

Zone Offroad 4 Inch Lift Kit | Ram 1500 (19-24) 4WD
SKU:
FQMS-ZOND99F
Product Type:
Lift Kits
- $1,708.55
- $1,708.55
-
- Unit price
-
per
FREE SHIPPING
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Important Notes
- Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
- Will NOT fit models equipped with the Thermal Axle option (Reference build code DSK-P).
- Will NOT fit Ram 1500 Rebel or Ram 1500 with Off-Road Group option. Vehicles equipped with the Off-Road Group option require the Ram 1500 Rebel 4in kit to achieve correct ride height. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the "Optional Equipment" section there will be a line item that reads "Off-Road Group" if your truck is equipped.
- RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
- Stock 20s can be reinstalled with factory tire size.
- This kit will NOT work on Diesel models.
- Does NOT work for models with factory rear airbag suspension.
- IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.
Features & Benefits
- Maintains on-road handling while improving off-road performance.
- Heavy duty cross members and skid plates for protection.
- New steering knuckles add strength and allow ESC system compatibility .
- Top mounted front strut spacer retains factory ride quality.
- Available with Nitro Series or FOX 2.0 Adventure Series rear shocks.
- Allows fitment of up to 35" tires
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
Take your 2019+ RAM 1500 to new heights with the new 4" IFS Lift System from Zone Offroad. Specially designed for the new RAM trucks to improve stance with clearance for larger tires. These kits are built right here in the USA to the highest quality standards to all for improved on-road and off-road performance. As with all Zone Offroad lift kits, these new kits are backed by Factory Protection Plus for peace of mind wherever your adventures may take you. Factory Protection Plus includes Zone Offroad's Limited Lifetime Warranty, ESC system compatibility and a 5-year 100,000-mile drive-train warranty.
Rear Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
OE Knuckle Type
RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Product Specs
| SKU: | FQMS-ZOND99F |
|---|---|
| FOX Adventure Series / Large Bore / Strut Spacer: | Specification
|
| Nitro Series / Large Bore / Strut Spacer: | Specification
|
| FOX Adventure Series / Standard / Strut Spacer: | Specification
|
| Nitro Series / Standard / Strut Spacer: | Specification
|
Installation Details
Installation Time:
8 hrs
Installation Difficulty:
Moderate
