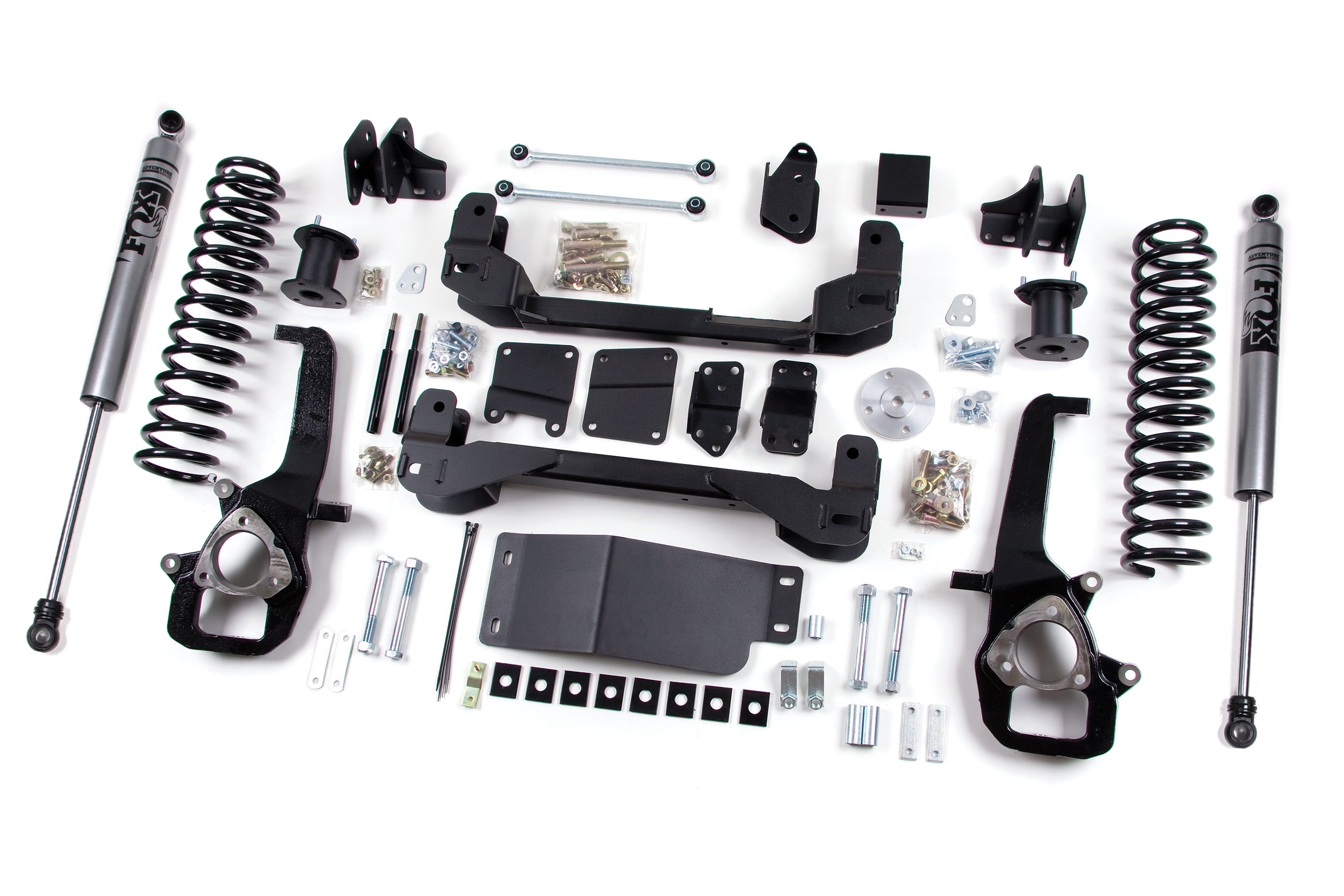

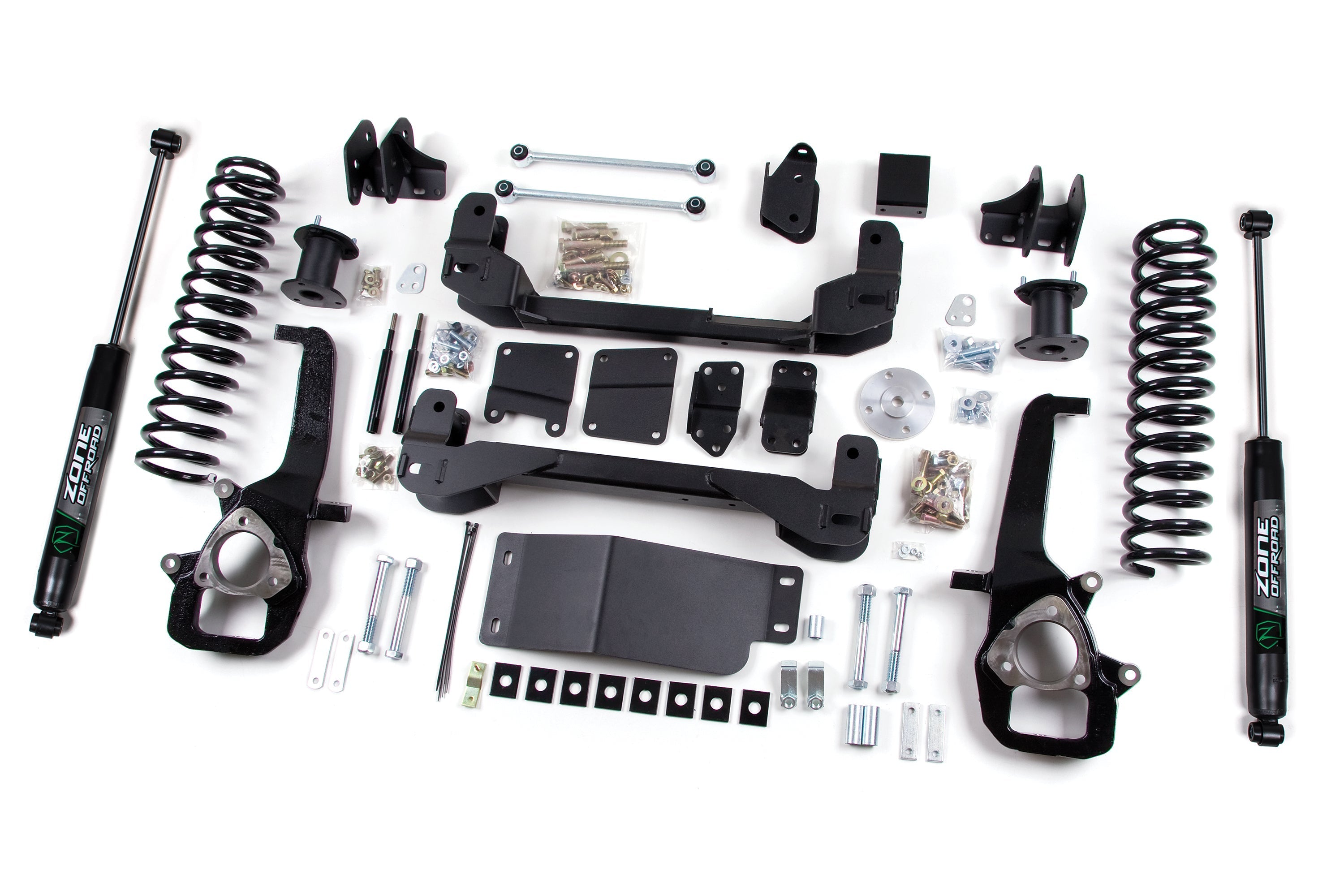

Zone Offroad 6 Inch Lift Kit | Ram 1500 (13-18) 4WD

Important Notes

1. Does NOT work with all wheel drive (AWD) models.
2. This kit is not recommended for TRX models. CV shaft vibration will occur on TRX models unless the TRX struts are replaced with standard struts. Instead, consider our 4" lift system for about 5" of TRX lift.
3. Will NOT fit adjustable air suspension (air-ride) equipped models. Fitment: Does not fit eco-diesel models. Front drive shaft WILL fail prematurely.
4. These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
5. Stock 17" wheels CAN NOT be re-installed.
6. Stock 20" can be re-installed with factory tire.

Features & Benefits

• This kit includes a 3" rear lift spring for a level rear end; a 5" rear lift spring is available in a "Tail High Rear End" version of this kit.
• Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
• Heavy-duty differential skid slate improves off-road protection.
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
• Top mount strut and preload spacers set ride height and maintain ride quality.

Recommended Tires & Wheels
(Trimming may be required)

• 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Stand out with a brand new, quality, yet affordable 6" suspension lift that lets you clear big 37" tires. Built for everyday driving but sturdy enough for off-road abuse. Get the look and performance you want out of your 4WD 2013 - 2018 Dodge / Ram 1500 Truck.

Rear Lift Option

These vehicles vary from 1" to 3" tail high from the factory. BDS offers both 3" and 5" rear kits. Be sure to measure your vehicle and order the appropriate rear lift height to level your truck.

• 3 Inch Coil Springs - Use if your vehicle is 3" tail high from the factory.

• 5 Inch Coil Springs - Use if your vehicle is level to 1" of tail high from the factory.

Rear Shock Option

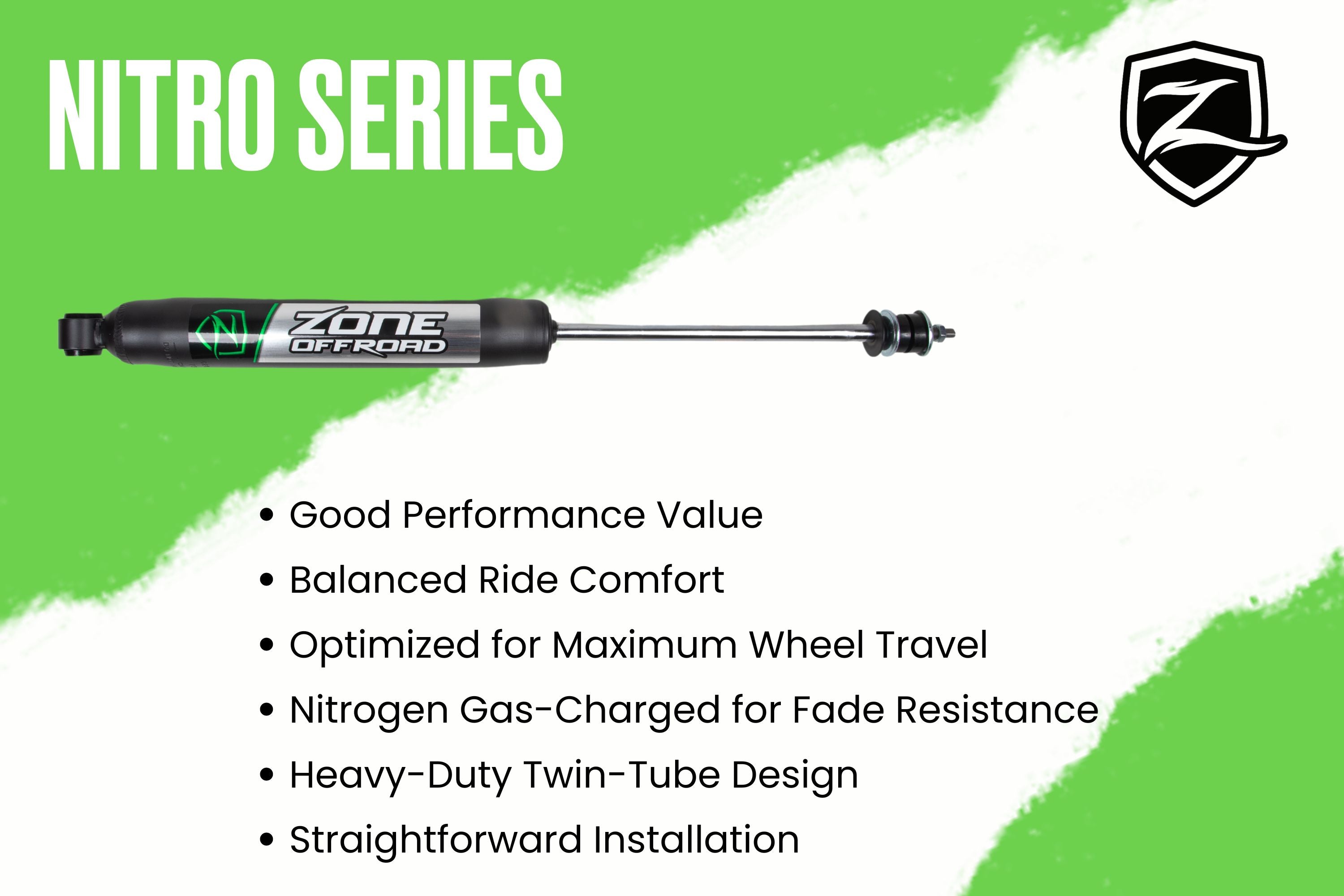

Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals

• Black powder coat finish

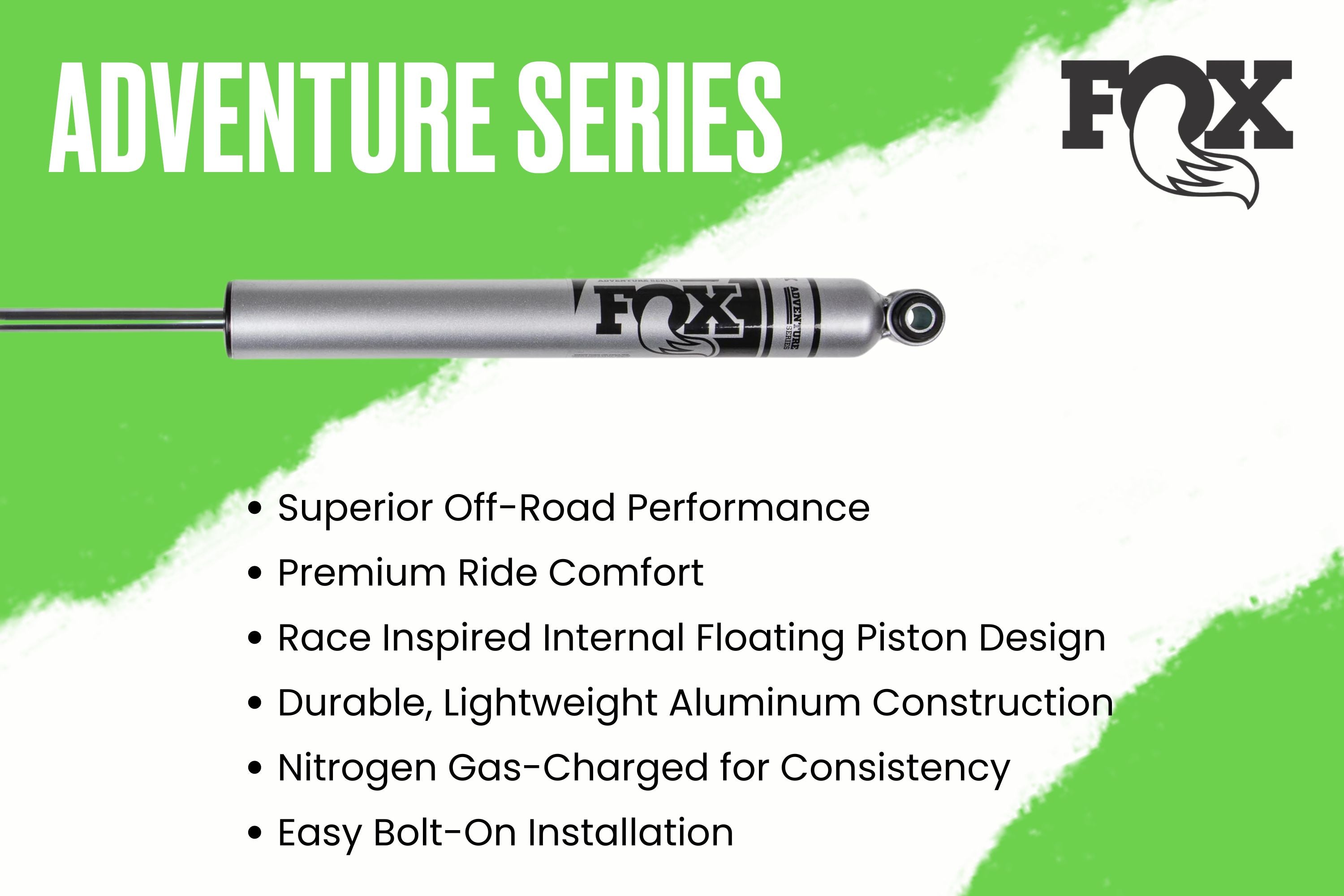

FOX 2.0 Adventure Series

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting silver coated finish
